Mixing System


Whether the raw material ratio is correct and whether the mixing is sufficient during the adhesive blending process in the Xia copper foil laminated board industry is one of the main reasons for the quality of the laminated board.
Our company has developed a glue mixing system for the copper-clad laminates industry, which has the advantages of advanced technology, correct measurement, reliable operation, and convenient operation. Successfully applied to multiple PCB manufacturing enterprises.
Our company can jointly develop system solutions and equipment configurations with customers based on their process requirements, and provide turnkey projects for the mixing workshop system from equipment manufacturing, on-site installation, and system debugging. According to customer needs, manual glue dispensing and adjustment can also be transformed into an automatic glue dispensing and adjustment mixing system, thereby further improving the customer's entire glue making system process.
Product Introduction
Whether the raw material ratio is correct and whether the mixing is sufficient during the adhesive blending process in the Xia copper foil laminated board industry is one of the main reasons for the quality of the laminated board.
Our company has developed a glue mixing system for the copper-clad laminates industry, which has the advantages of advanced technology, correct measurement, reliable operation, and convenient operation. Successfully applied to multiple PCB manufacturing enterprises.
Our company can jointly develop system solutions and equipment configurations with customers based on their process requirements, and provide turnkey projects for the mixing workshop system from equipment manufacturing, on-site installation, and system debugging. According to customer needs, manual glue dispensing and adjustment can also be transformed into an automatic glue dispensing and adjustment mixing system, thereby further improving the customer's entire glue making system process.


Job Description
The glue making facilities mainly include raw material storage tanks, glue mixing detectors, curing detectors, weighing tanks, intermediate tanks, separation shears, various pumps and valves, and power drives.
The control system consists of three main parts: weighing and dispensing control system, dispensing control system, and automatic dispensing system. Each control system can be operated automatically or manually. During automatic control, the computer calculates the weight of various raw materials based on the mixing ratio, and the weighing and dispensing control system completes the weighing and measurement. The mixture is then sent for monitoring and mixing, and the mixing is automatically controlled according to the required speed and time of the process. The produced adhesive waves are automatically supplied to the glue machine for use according to the selection.


Mixing system function
● Cooperate with multiple glue machines to complete automatic glue supply
● Provide drive, control, and monitoring for the entry of raw materials into the corresponding storage tanks.
● Proportion management of process raw materials.
● Automatic weighing and measurement control.
● Automatic timed mixing and speed control.
● Under normal working conditions, the system is fully automatically controlled.
● Manual control of the system during maintenance or special circumstances. Liquid level control of mixing kettle.

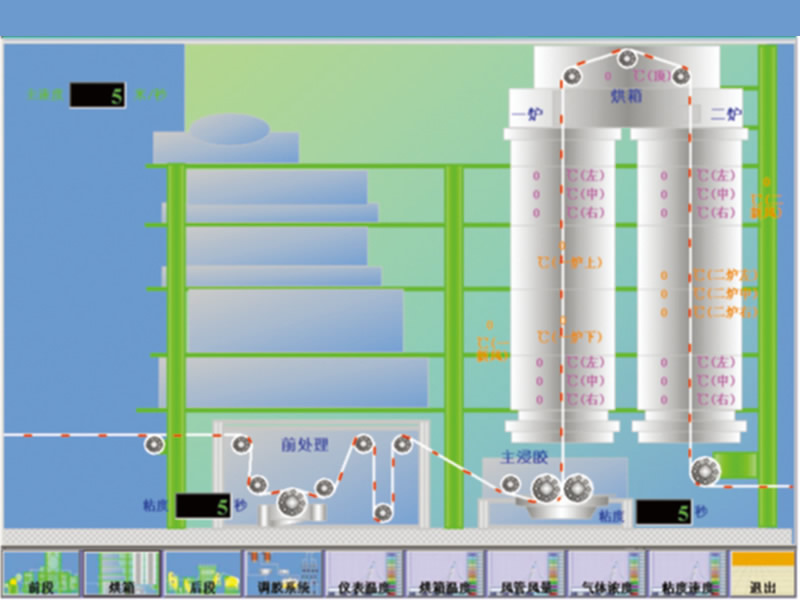

● All mixing operations can be completed on the human-machine interface.
● The screen dynamically displays all operations, status, alarms, and real-time data.
● All mixed glue data, report records, and historical queries.
● Design various reports according to user needs.
