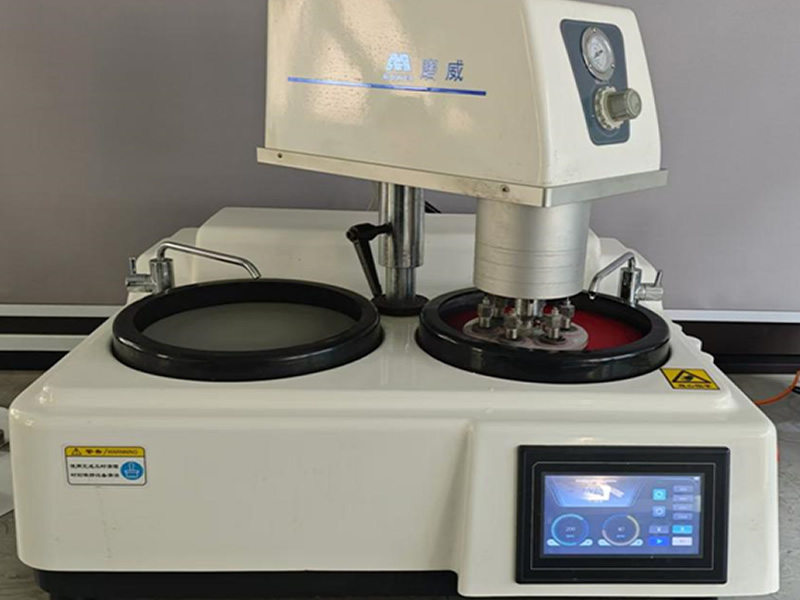

The MPD-2Z automatic metallographic sample grinding and polishing machine is a dual disc desktop machine, which is versatile and can achieve the entire process of rough grinding, fine grinding, and fine polishing of metallographic samples. It is an ideal equipment for enterprises and research institutes.
technical parameter
1. Grinding and throwing disc diameter: φ 230mm or φ 250mm (can be customized with a diameter of φ 300mm)
2. Grinding and throwing disc speed: 50-1000r/min (stepless speed regulation), 400 r/min, 600 r/min, 800 r/min, 1000 r/min (four level constant speed)
3. Grinding and polishing head speed: 5-150r/min (stepless speed regulation)
4. Preparation sample quantity: 4 (customized 6)
5. Loading range: adjustable from 0-0.7Mpa, factory parameter set to within 0.2Mpa (manual pressure adjustment)
6. Sample preparation time: 0-3000 seconds (S)
7. Sample diameter: 30mm (can be customized to be 22mm or 45mm)
8. Input voltage: single-phase AC220V 50Hz
9. Input power: 1.1KW
10. Dimensions: 980 * 92
