The ZXQ-5K metallographic specimen automatic embedding machine is suitable for plastic pressing of metallographic or lithological specimens with small, irregular shapes that are difficult to handle. The ZXQ-5K automatic embedding machine can achieve automatic heating and pressurization. After being pressed and formed, it will automatically stop and release pressure. Pressing the button can automatically lift the pressed sample for easy retrieval. This machine is also equipped with a water cooling system, which can be used not only for thermosetting materials but also for thermoplastic materials.
This machine adopts hydraulic control. The characteristic of the cylinder body is the use of special process design, and the embedding process is completed within 5 minutes
Main parameters:
• Sample compression specifications: φ 22mm, φ 30mm, and φ 45mm (choose one)

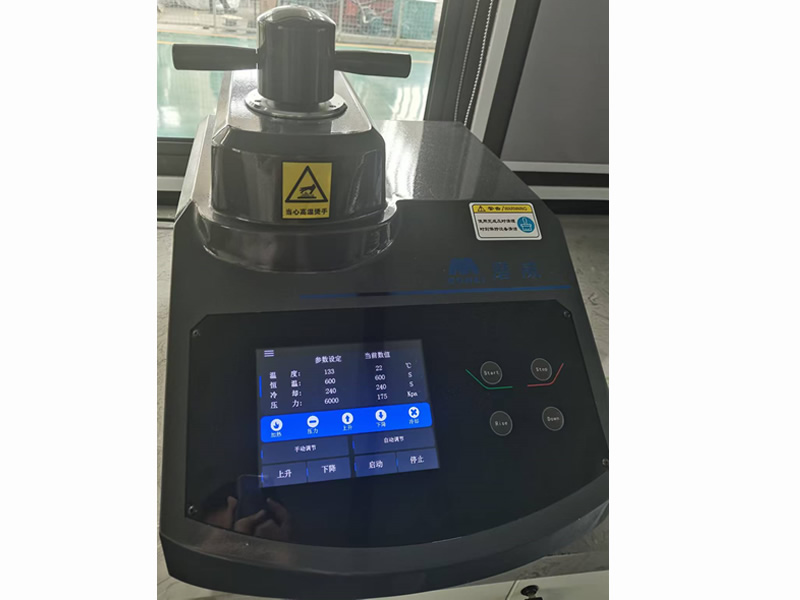

• Color touch screen control
• Heater specification: 2600W
• Adjustable pressure: 0-10MPa
• Sample preparation time: 5 minutes
• Equipped with water cooling
• External dimensions：435x610x430mm
• net weight：45KG
