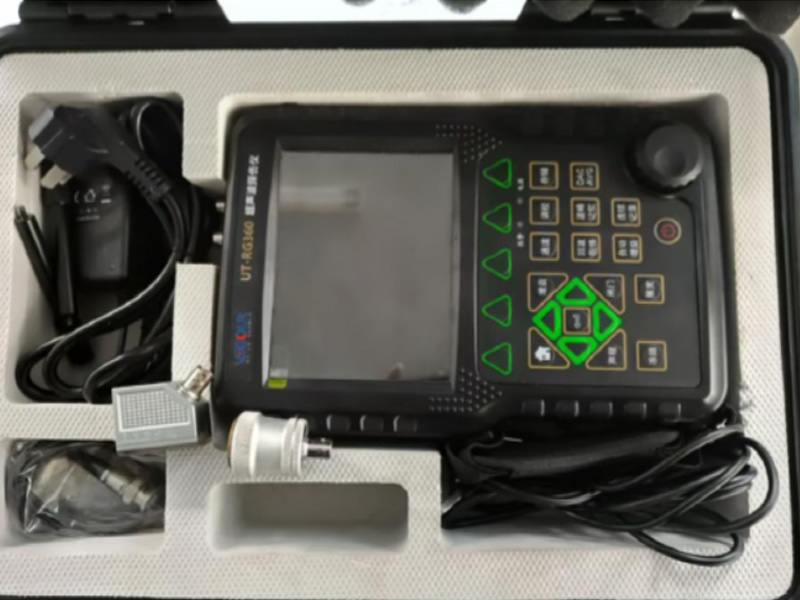

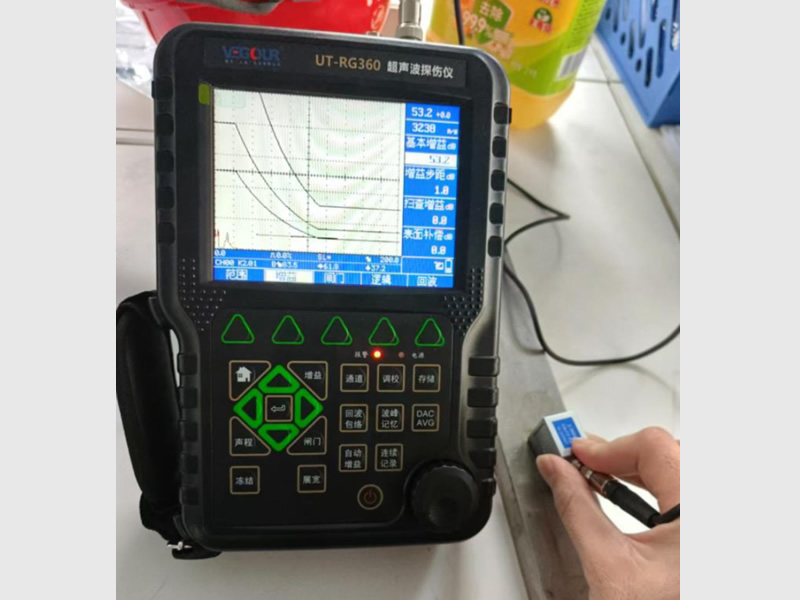

UT-RG360 is a portable, fully digital ultrasonic flaw detector that can quickly and accurately detect, locate, evaluate, and diagnose various defects (cracks, inclusions, pores, etc.) inside workpieces without damage. This instrument can be used in both laboratories and engineering sites. It can be widely applied in fields such as manufacturing, steel metallurgy, and metalworking that require defect detection and quality control. It is also widely used in in-service safety inspections and life assessments of aviation, aerospace, railway transportation boilers, pressure vessels, and other fields.
Main technical parameters
1. Detection range: (0~9999) mm
2. Operating frequency: (0.2~20) MHz
3. Sound speed range: (1000~15000) m/s
4. Dynamic range: ≥ 6dB
5. Vertical linear error: ≤ 2.5%
6. Horizontal linear error: ≤ 0.1%%
7. Resolution:>40dB (5P14)
8. Sensitivity margin:>65dB (200mm deep with 2 flat bottomed holes)
9. Digital suppression: (0~80)%, does not affect linearity and gain digital suppression
10. Electrical noise level: ≤ 8%
11. Probe type: straight probe, oblique straight probe
12. Gates: inlet gate, outlet gate; Single gate reading; Double gate reading
13. Alarm: Beep alarm, LED light alarm
14. Power supply: Direct Current (DC) 9V; Lithium batteries can work continuously for more than 8 hours
15. Dimensions: 263x170 x61 (mm)
16. Environmental temperature: (-10~50) ℃
17. Relative humidity: (Relative humidity: (20~95)% RH)
Note: The above indicators were measured under the conditions of probe frequency of 25MHz and full detection mode.
