Used for static performance testing and analysis of metal and non-metal (including composite materials) in tension, compression, bending, shear, peeling, tearing, holding, relaxation, reciprocating cycle, and low cycle fatigue tests. It can automatically obtain test parameters such as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, E, and can conduct tests and provide data according to relevant domestic and international standards such as GB, ISO, DIN, ASTM, JIS, etc. The testing software has multi axis function display of curves, load deformation, stress-strain, stress-strain, strain time, etc. Multiple curves in HYtest software can be displayed with different colors overlaid or separated in the same coordinate system. Powerful curve analysis function, which can display and annotate various characteristics on the tensile test curve, and can automatically and manually take points on the curve for comparative analysis.
1、 Application industry:
Metrology and Quality Inspection; Rubber and plastic; Electronic appliances; Automobile production; Textile and chemical fiber; Wire and cable; Packaging materials and food; Instruments and Apparatuses; medical apparatus and instruments; Civil nuclear energy; Civil aviation; Higher education institutions; Research laboratory; Inspection, arbitration, and technical supervision departments; Building materials ceramics; Petrochemical industry; Other industries.
Typical test samples: hydrogel, plastic film, rubber, injection needle, thin metal wire, fiber and thread, aluminum foil, copper foil, photovoltaic bonding tape, solar panel, biological material, polymer material, adhesive, packaging tape, infusion tube, stapler, foam material, pharmaceutical industry, packaging, paper products, elastomers, wood products, thin metal, high-strength metal wire, auto parts, safety belts, safety ropes, fasteners, composite materials, etc.
2、 Main technical parameters:

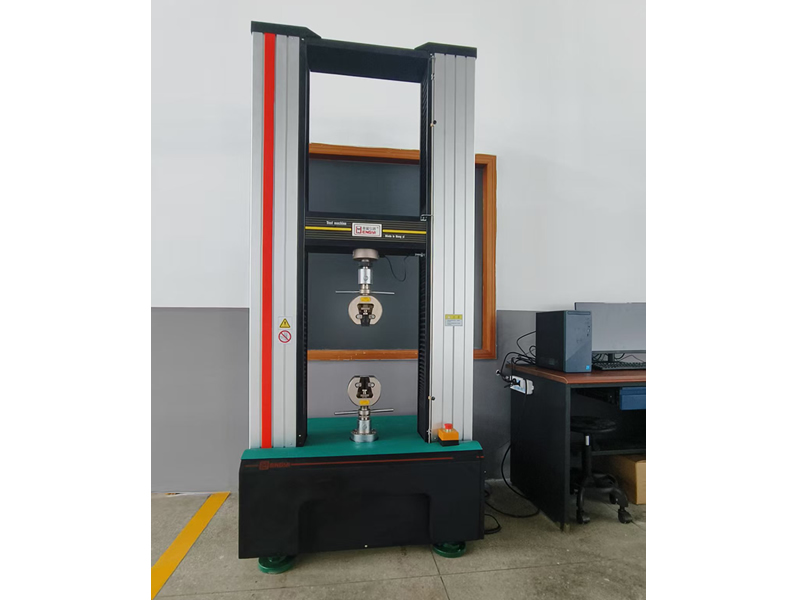

1. Product specification: HY-10080
2. Accuracy level: Level 0.5
3. Rated load: 100KN (1N 5N 10N 20N 50N 100N 200N 500N 1000N 2000N 3000N 5000N 10KN 20KN 30KN can be equipped with multiple units)
4. Effective force measurement range: 0.1/100-100;
5. Test force resolution, load ± 500000 yards; There is no distinction between internal and external, and the resolution remains unchanged throughout the entire process.
6. Effective test width: 600mm (can be raised)
7. Effective experimental space: 800mm (can be widened)
8. Test speed: 0.001~500mm/min (adjustable arbitrarily)
9. Speed accuracy: within ± 0.5% of the displayed value;
10. Displacement measurement accuracy: within ± 0.5% of the displayed value;
11. Deformation measurement accuracy: within ± 0.5% of the displayed value;
12. Stress controlled rate range: 0.005% to 6% FS/S
13. Stress controlled rate accuracy: When the rate is less than 0.05% FS/S, it is within ± 1% of the set value; When the rate is ≥ 0.05% FS/S, it is within ± 0.5% of the set value;
14. Strain control rate range: 0.002% to 6% FS/S
15. Strain control rate accuracy: When the rate is less than 0.05% FS/S, it is within ± 2% of the set value; When the rate is ≥ 0.05% FS/S, it is within ± 0.5% of the set value;
16. Constant force/displacement/deformation measurement range: 0.5% to 100FS
17. Constant force/displacement/deformation measurement accuracy: When the set value is less than 10% FS, it is within ± 1% of the set value; When the set value is ≥ 10% FS, it is within ± 0.1% of the set value;
18. Test bench lifting device: fast/slow speed control, can be inched;
19. Test bench safety device: electronic limit protection
20. Test bench return: Manually return to the initial position of the test at a certain speed, and automatically return after the test is completed;
21. Test automatic parking with fixed time, test automatic parking with fixed deformation, test automatic parking with fixed load
22. Overload protection: Automatic protection when the load exceeds 10%;
23. Automatic diagnostic function, regularly checks the measurement system and drive system for overload, overvoltage, overcurrent, overload, etc., and immediately protects in case of abnormal situations
24. Power supply: 2000W
25. Host weight: 1250kg
26. Power supply voltage: 220V (single-phase)
27. Host size: 1000 * 680 * 2200mm
3、 Main features:
1. Adopting microcomputer control throughout the entire testing process, real-time dynamic display of load values, displacement values, deformation values, test curves, etc;
2. Adopting a high-speed testing platform with high integration, reliability, precision, and powerful data processing capabilities;
3. By adopting a neuron adaptive control system, it is possible to achieve fully digital three loop control of force, deformation, and displacement. The control loops can automatically switch between each other and achieve smooth transition without impact during switching;
4. Using a microcomputer for data processing and analysis, the experimental results can be automatically saved. After the experiment is completed, the experimental curve can be retrieved again, and the experimental process can be reproduced or the curve can be enlarged and compared through the curve;
5. The experimental software on the Windows platform, which is entirely in Chinese or English, has strong data and graphics processing capabilities and can print complete experimental reports and curves in real time;
6. The testing machine has multiple safety protection functions such as limit protection, overload protection, and emergency stop protection;
7. Various fixtures, elongation measuring devices, and other accessories are configured according to customer requirements.
